Ti-6Al-4V / TC4 3D Printing Service for Custom Titanium Parts
Ti-6Al-4V / TC4 3D Printing Service for Custom Titanium Parts
Ti-6Al-4V / TC4 3D printing service is widely used for custom titanium parts that require high strength-to-weight ratio, corrosion resistance, complex geometry, and functional performance. As one of the most commonly used titanium alloys for additive manufacturing, Ti-6Al-4V is suitable for lightweight brackets, housings, medical components, aerospace structures, robotics parts, fixtures, and low-volume titanium production.
At Neway3DP, our Ti-6Al-4V TC4 3D Printing Service supports custom titanium parts based on customer CAD files and engineering drawings. We provide titanium powder bed fusion, build orientation review, support design, heat treatment, HIP, CNC machining, surface finishing, and inspection support for prototype and low-volume production projects.
For engineers and buyers preparing a Ti-6Al-4V 3D printing quote, the key is not only to confirm the material grade. The supplier must also evaluate printability, support structure, distortion risk, post-processing requirements, machining allowance, tolerance control, and inspection documentation before confirming the final manufacturing route.
What Is Ti-6Al-4V / TC4?
Ti-6Al-4V is an alpha-beta titanium alloy containing approximately 6% aluminum and 4% vanadium. It is also commonly known as Titanium Grade 5 in international applications. TC4 is the common Chinese designation for this material, and it is widely used in aerospace, medical, automotive, robotics, marine, and industrial applications.
In additive manufacturing, Ti-6Al-4V / TC4 is popular because it offers a strong balance of mechanical strength, low density, corrosion resistance, and material availability. For many custom titanium parts, it is the first material engineers consider when titanium 3D printing is required.
Material Name | Common Meaning | Typical Use in RFQ |
|---|---|---|
Ti-6Al-4V | International common name for titanium alloy with aluminum and vanadium | Used in global drawings, material specifications, and engineering requirements |
TC4 | Chinese common designation for Ti-6Al-4V titanium alloy | Common in China-based manufacturing, material purchasing, and supplier communication |
Grade 5 | Commercial titanium Grade 5 name commonly associated with Ti-6Al-4V | Often used in international procurement and material comparison |
Why TC4 Is Popular for 3D Printing
TC4 is popular for 3D printing because it combines lightweight performance with high mechanical strength and corrosion resistance. Compared with stainless steel, TC4 can reduce part weight while maintaining strong structural capability. Compared with aluminum, it provides higher strength and better performance in demanding environments.
For custom titanium additive manufacturing, TC4 is especially useful when the design includes complex geometry, internal cavities, topology-optimized structures, thin walls, or integrated features that would be difficult to manufacture by machining alone. This makes TC4 suitable for applications where performance and geometry are more important than the lowest raw material cost.
Material Advantage | Why It Matters for 3D Printing |
|---|---|
High strength-to-weight ratio | Supports lightweight titanium structures for aerospace, robotics, medical, and performance applications |
Corrosion resistance | Suitable for demanding environments where corrosion, humidity, or chemical exposure may be present |
Good material availability | Common titanium alloy for additive manufacturing, making it practical for prototypes and low-volume production |
Complex geometry capability | Works well with powder bed fusion for lattice structures, internal channels, and organic shapes |
Broad industry acceptance | Used across aerospace, medical, automotive, robotics, and industrial applications |

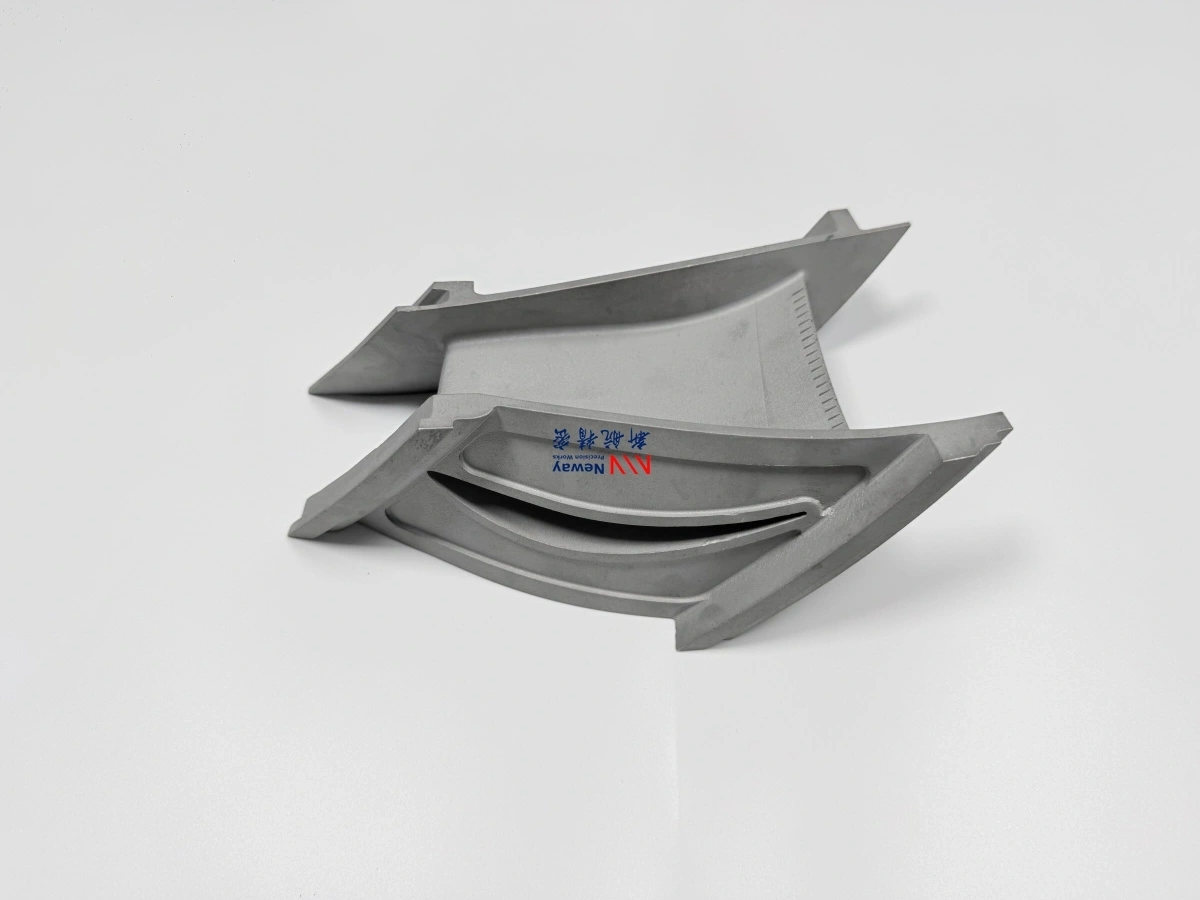

Custom TC4 3D Printed Parts
Neway3DP manufactures custom TC4 3D printed parts according to customer 3D CAD models and 2D drawings. The process is suitable for prototypes, pilot batches, functional validation parts, and low-volume production where tooling is not required. For complex titanium parts, TC4 additive manufacturing can reduce assembly steps, reduce material waste, and enable geometry that may be difficult or expensive to machine from billet.
Typical TC4 3D printed parts include lightweight brackets, housings, fixtures, medical components, aerospace structures, robotics parts, custom connectors, and test hardware. For applications requiring tight tolerance or controlled assembly surfaces, the printed near-net-shape part can be finished with CNC machining and inspection.
Part Type | Why TC4 3D Printing Is Suitable | Common Post-Processing |
|---|---|---|
Lightweight brackets | Supports topology optimization, weight reduction, and integrated mounting features | Heat treatment, CNC machining, CMM inspection |
Housings | Allows complex internal features, compact structure, and reduced assembly | CNC machining, surface treatment, dimensional inspection |
Fixtures | Useful for custom lightweight tooling and special holding structures | CNC finishing, threaded inserts, surface finishing |
Medical components | Supports lightweight structures, custom shapes, and functional titanium geometry | Heat treatment, polishing, cleaning, inspection documentation |
Aerospace structures | Provides high strength-to-weight ratio for brackets, supports, ducts, and test hardware | HIP, heat treatment, CNC machining, CMM or CT inspection |
Printing Process for Ti-6Al-4V / TC4 Parts
Ti-6Al-4V / TC4 parts are commonly produced by Powder Bed Fusion, including SLM or DMLS-type processes. In this process, a laser selectively melts titanium alloy powder layer by layer according to the sliced 3D model. This makes it suitable for dense, complex, high-performance titanium parts.
For TC4 titanium additive manufacturing, process planning is critical. Build orientation, support design, powder quality, oxygen control, laser parameters, and post-print stress relief all affect final part quality. Engineering review before printing helps reduce distortion, support removal difficulty, surface defects, and post-machining risk.
Process Step | Purpose | Engineering Focus |
|---|---|---|
CAD and drawing review | Evaluate printability, tolerance requirements, and post-processing needs | Wall thickness, datum surfaces, holes, threads, surface finish, inspection notes |
Build orientation | Define printing direction and support strategy | Support volume, deformation risk, build height, surface quality, machining allowance |
SLM printing | Build dense TC4 titanium parts layer by layer | Laser parameters, oxygen control, powder consistency, thermal stability |
Support removal | Remove supports and separate the part from the build plate | Protect thin walls, functional surfaces, and delicate features |
Final processing | Improve mechanical properties, dimensional accuracy, and surface condition | Heat treatment, HIP, CNC machining, surface treatment, inspection |
Post-Processing for Ti-6Al-4V / TC4 3D Printed Parts
Post-processing is often required for functional TC4 3D printed parts. As-printed titanium parts may have residual stress, support marks, layer texture, rough surfaces, and dimensional variation on critical features. Post-processing improves mechanical stability, surface quality, density, fatigue performance, and assembly accuracy.
Neway3DP can combine TC4 additive manufacturing with Heat Treatment, HIP, CNC finishing, EDM, polishing, blasting, and Surface Treatment according to the drawing and application requirements.
Post Process | Why It Is Used | Typical TC4 Part Features |
|---|---|---|
Heat treatment | Relieves residual stress and stabilizes mechanical properties | Functional brackets, housings, medical parts, aerospace components |
HIP | Improves internal density and fatigue performance for critical applications | Aerospace structures, fatigue-loaded brackets, high-performance titanium parts |
CNC machining | Achieves tighter tolerances on datum surfaces, holes, threads, and mating faces | Mounting surfaces, precision bores, sealing faces, threaded holes |
Surface finishing | Improves appearance, roughness, corrosion resistance, or functional surface quality | Visible parts, medical components, aerospace and robotics components |
Inspection | Confirms dimensional accuracy, surface condition, and final compliance | FAI, dimensional report, CMM report, CT or X-ray inspection if required |
CNC Machining After TC4 3D Printing
Although TC4 3D printing can produce complex near-net-shape parts, CNC Machining is often required for precision features. As-printed surfaces may not meet the tolerance, flatness, roughness, or positional accuracy required for final assembly.
Common CNC-machined features include datum surfaces, mounting faces, precision holes, threaded holes, sealing faces, bearing seats, slots, and assembly interfaces. For this reason, machining allowance should be planned before printing, especially when the part includes tight tolerance zones or functional mating surfaces.
Feature | Why CNC Machining Is Needed | Typical Requirement |
|---|---|---|
Datum surface | Provides reliable inspection and assembly reference | Flatness, parallelism, position control |
Precision hole | Improves roundness, diameter accuracy, and positional accuracy | Drilling, reaming, boring, or multi-axis machining |
Threaded hole | Improves thread strength and assembly repeatability | Tapping, thread milling, or thread insert installation |
Sealing face | Controls roughness and flatness for sealing performance | CNC finishing or grinding depending on drawing requirements |
Mating interface | Ensures stable assembly with other components | Machining allowance, CMM inspection, surface finish control |
Quality Control for TC4 3D Printed Parts
Quality control for TC4 3D printed parts should match the final application. A prototype for design validation may only require dimensional inspection and visual review, while aerospace, medical, or load-bearing titanium parts may require more complete inspection documentation and process traceability.
Common quality documents and inspection methods include material certificates, dimensional reports, CMM reports, surface roughness measurement, heat treatment records, HIP records, CT inspection, X-ray inspection, and final visual inspection. For parts used in Aerospace and Aviation, inspection planning should be confirmed before quotation.
Inspection Item | Purpose | When It Is Recommended |
|---|---|---|
Material certificate | Confirms titanium grade, powder batch, and material traceability | Functional, medical, aerospace, or traceability-sensitive parts |
Dimensional report | Confirms drawing dimensions and critical features | Most custom TC4 printed parts |
CMM inspection | Checks datums, precision features, and positional relationships | Parts with tight tolerances or complex assembly requirements |
CT / X-ray inspection | Checks internal defects, porosity, cracks, or hidden channels | Critical structural parts or components with internal features |
Surface roughness report | Confirms functional or cosmetic surface condition | Sealing surfaces, flow surfaces, visible parts, medical components |
Ti-6Al-4V Grade 5 and Titanium Alloy Printing Options
Some customer drawings specify TC4, while others specify Ti-6Al-4V or Grade 5. For international projects, Ti-6Al-4V Grade 5 3D Printing is often used as the commercial material reference. For broader material selection, Neway3DP also supports Titanium Alloy 3D Printing for other titanium grades depending on the project requirements.
If the drawing only states titanium alloy without a specific grade, the material should be confirmed before quotation. TC4 may be suitable for many lightweight functional parts, but medical, corrosion-sensitive, or elevated-temperature applications may require a different titanium alloy or additional post-processing route.
RFQ Requirements for Ti-6Al-4V / TC4 3D Printing
To provide an accurate Ti-6Al-4V 3D printing quote, the supplier needs enough technical information to evaluate printability, support strategy, material requirements, tolerances, post-processing, inspection, and delivery risk. A 3D model is required for geometry review, while a 2D drawing is needed to confirm tolerances, threads, datum surfaces, surface finish, and inspection requirements.
For faster quotation, please provide the following information:
3D CAD model, preferably STEP, X_T, IGS, or STL format
2D drawing with tolerances, datum requirements, threads, surface finish, and inspection notes
Material requirement, such as Ti-6Al-4V, TC4, or Titanium Grade 5
Quantity for prototype, pilot batch, or low-volume production
Required post-processing, such as heat treatment, HIP, CNC machining, EDM, polishing, blasting, or passivation
Application environment, including load, temperature, corrosion exposure, fatigue requirement, or medical use
Special inspection requirements, such as CMM report, CT inspection, X-ray inspection, material certificate, tensile test, or surface roughness report
Target delivery schedule and shipping destination
Conclusion
Ti-6Al-4V / TC4 is one of the most practical titanium alloys for custom 3D printed parts because it offers high strength-to-weight ratio, corrosion resistance, good material availability, and broad application coverage. It is suitable for custom brackets, housings, fixtures, medical components, aerospace structures, robotics parts, and functional titanium prototypes.
Neway3DP provides TC4 titanium additive manufacturing with powder bed fusion, heat treatment, HIP, CNC machining, surface treatment, and inspection support. With complete CAD files, 2D drawings, material requirements, quantity, post-processing needs, and inspection notes, we can provide a more accurate quote for custom Ti-6Al-4V / TC4 3D printed parts.
