Introduction

Silicon Carbide (SiC) 3D printing offers groundbreaking capabilities for manufacturing ultra-durable, wear-resistant components essential in extreme aerospace environments. Utilizing ceramic 3D printing technologies such as Binder Jetting and Vat Photopolymerization, Silicon Carbide (SiC) parts achieve exceptional hardness, thermal shock resistance, and high-temperature stability, making them ideal for aerospace heat shields and bearing applications.

Compared to traditional forming methods, SiC 3D printing enables faster production cycles, lightweight complex geometries, and high-performance custom solutions for critical aerospace missions.

Applicable Material Matrix

Material

Purity (%)

Flexural Strength (MPa)

Hardness (HV10)

Thermal Conductivity (W/m·K)

Max Operating Temp. (°C)

Silicon Carbide (SiC)

>99%

400–500

2200–2500

120–180

1600

Material Selection Guide

  • Silicon Carbide (SiC): Ideal for aerospace bearing components and heat shield structures, offering high hardness, extreme wear resistance, and excellent thermal conductivity for demanding high-temperature applications.

Process Performance Matrix

Attribute

Silicon Carbide 3D Printing Performance

Dimensional Accuracy

±0.05–0.1 mm

Density (after sintering)

>98% Theoretical Density

Minimum Wall Thickness

0.8–1.5 mm

Surface Roughness (As-Sintered)

Ra 3–7 μm

Feature Size Resolution

100–200 μm

Process Selection Guide

  • Extreme Wear Resistance: SiC’s hardness (up to 2500 HV10) provides superior performance in abrasive, high-load aerospace applications.

  • High-Temperature Strength: Retains mechanical integrity at continuous-use temperatures up to 1600°C, critical for heat shields and thermal barriers.

  • Thermal Shock Resistance: SiC tolerates rapid temperature changes, making it ideal for components subjected to extreme thermal cycling during flight and re-entry.

  • Lightweight and Complex Structures: 3D printing allows lightweight design optimizations, such as hollow internal lattices, to reduce mass without sacrificing strength.

Case In-Depth Analysis: SiC 3D Printed Bearings for Aerospace Thermal Shields

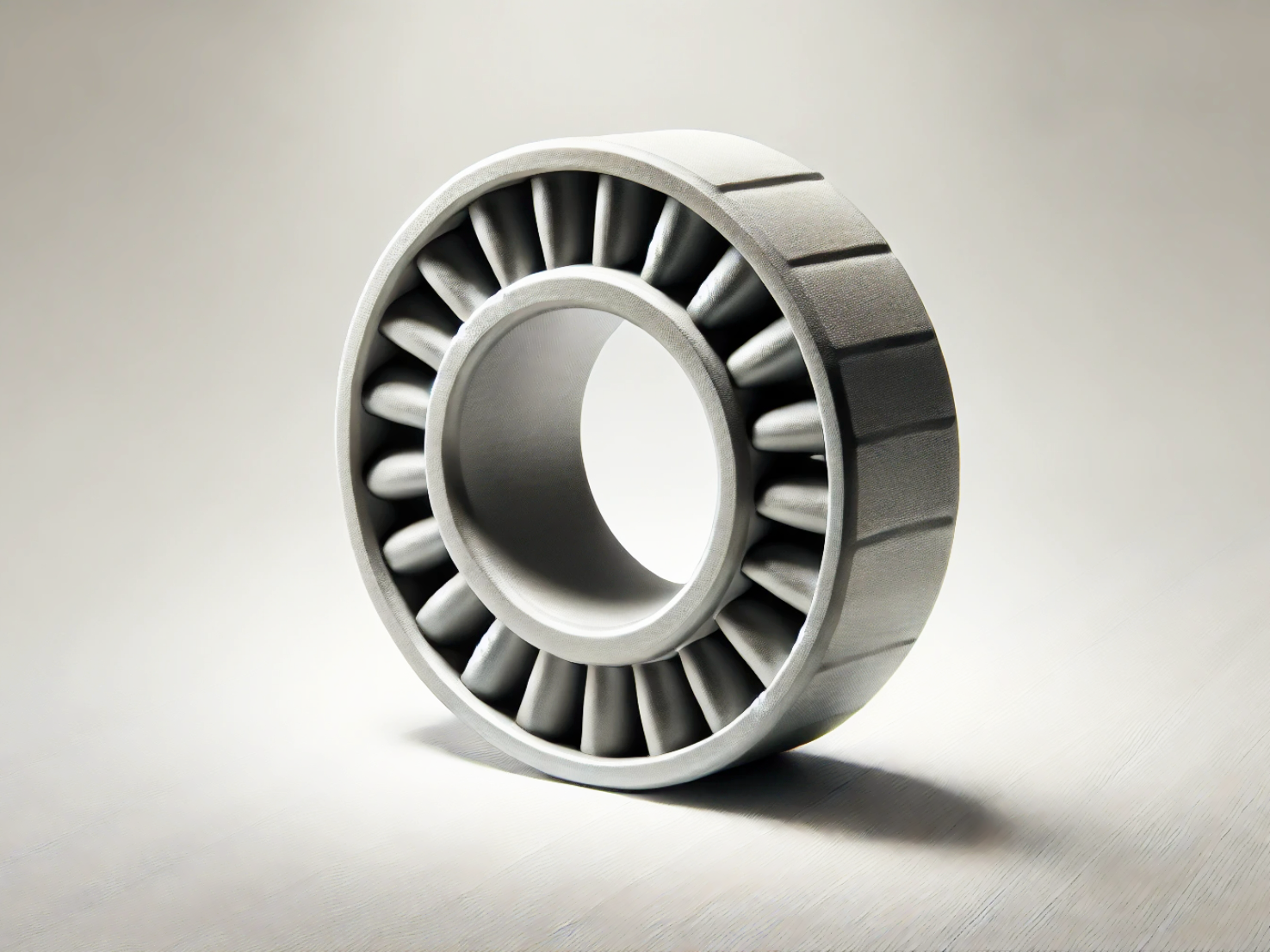

An aerospace engineering company required bearings capable of operating within spacecraft thermal protection systems, exposed to cyclic temperatures exceeding 1400°C. Through our Silicon Carbide 3D printing service, we manufactured precision SiC bearings, achieving flexural strengths over 450 MPa and a density of>98%. The components maintained structural integrity after repeated thermal shock cycles, providing minimal wear rates under severe friction conditions. Post-processing included fine CNC machining for critical tolerance adjustments.

Industry Applications

Aerospace and Aviation

  • Heat shield structures for spacecraft and re-entry vehicles.

  • Ultra-high-temperature bearings for propulsion and thermal control systems.

  • Lightweight thermal protection system (TPS) components.

Energy and Power

  • High-temperature turbine and reactor components.

  • Wear-resistant seals and bushings for renewable energy systems.

  • Thermal management elements for concentrated solar power (CSP) plants.

Manufacturing and Tooling

  • High-temperature nozzles and wear plates.

  • Abrasion-resistant tooling for extreme environments.

  • Structural ceramics for high-load, corrosive environments.

Mainstream 3D Printing Technology Types for Silicon Carbide Ceramic Parts

  • Binder Jetting: Ideal for producing large or batch quantities of complex SiC parts before final sintering.

  • Vat Photopolymerization (SLA/DLP): Preferred for small, high-precision SiC components requiring fine surface finishes and intricate geometries.

  • Material Extrusion: Suitable for robust structural SiC parts requiring larger dimensions and higher mechanical loads.

FAQs

  1. What are the advantages of Silicon Carbide 3D printing for aerospace applications?

  2. How does SiC 3D printing improve the durability of heat shield and bearing components?

  3. What post-processing steps are necessary for Silicon Carbide 3D printed parts?

  4. Can SiC 3D printed components withstand rapid thermal cycling in aerospace environments?

  5. How accurate and dense are 3D printed Silicon Carbide parts compared to traditional forming methods?
