What Design Information Is Needed for an Inconel 718 3D Printing Quote?
What Design Information Is Needed for an Inconel 718 3D Printing Quote?

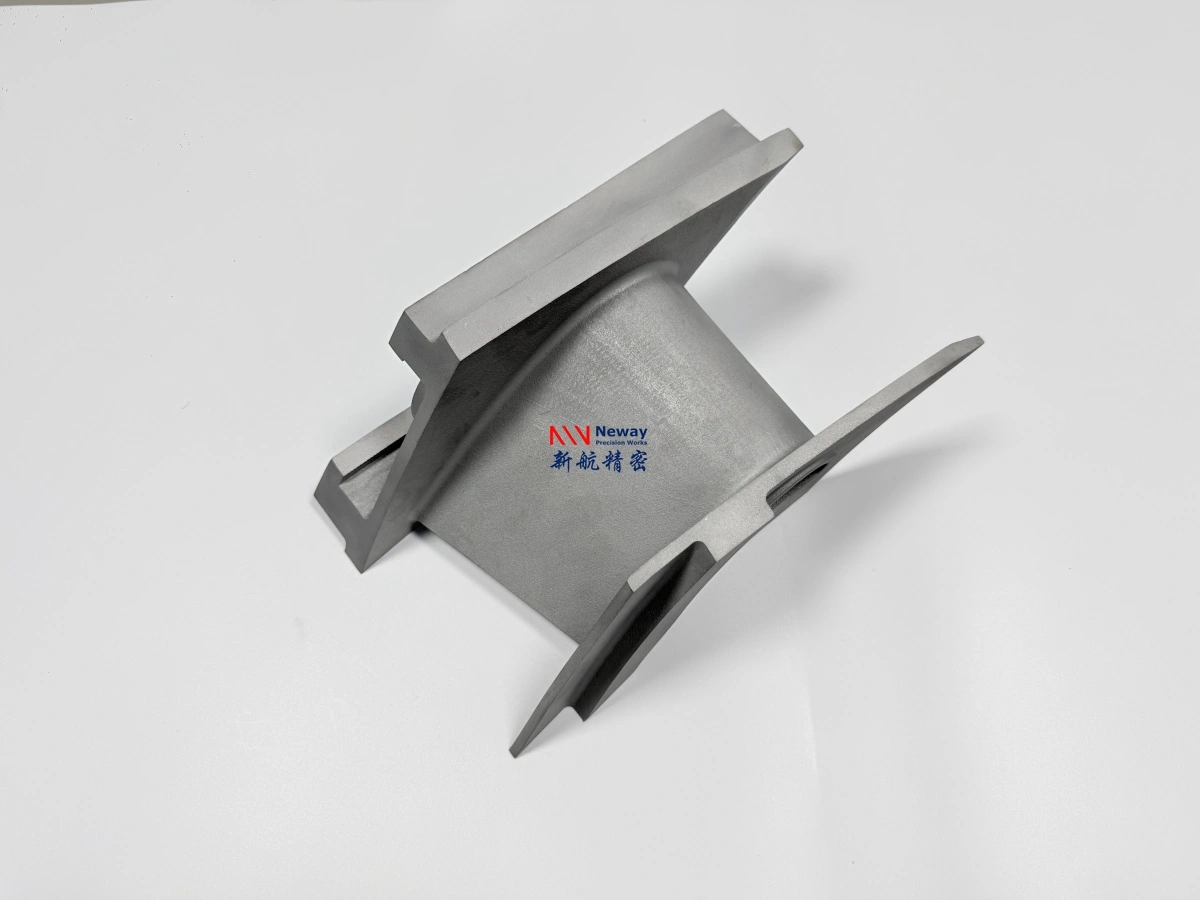

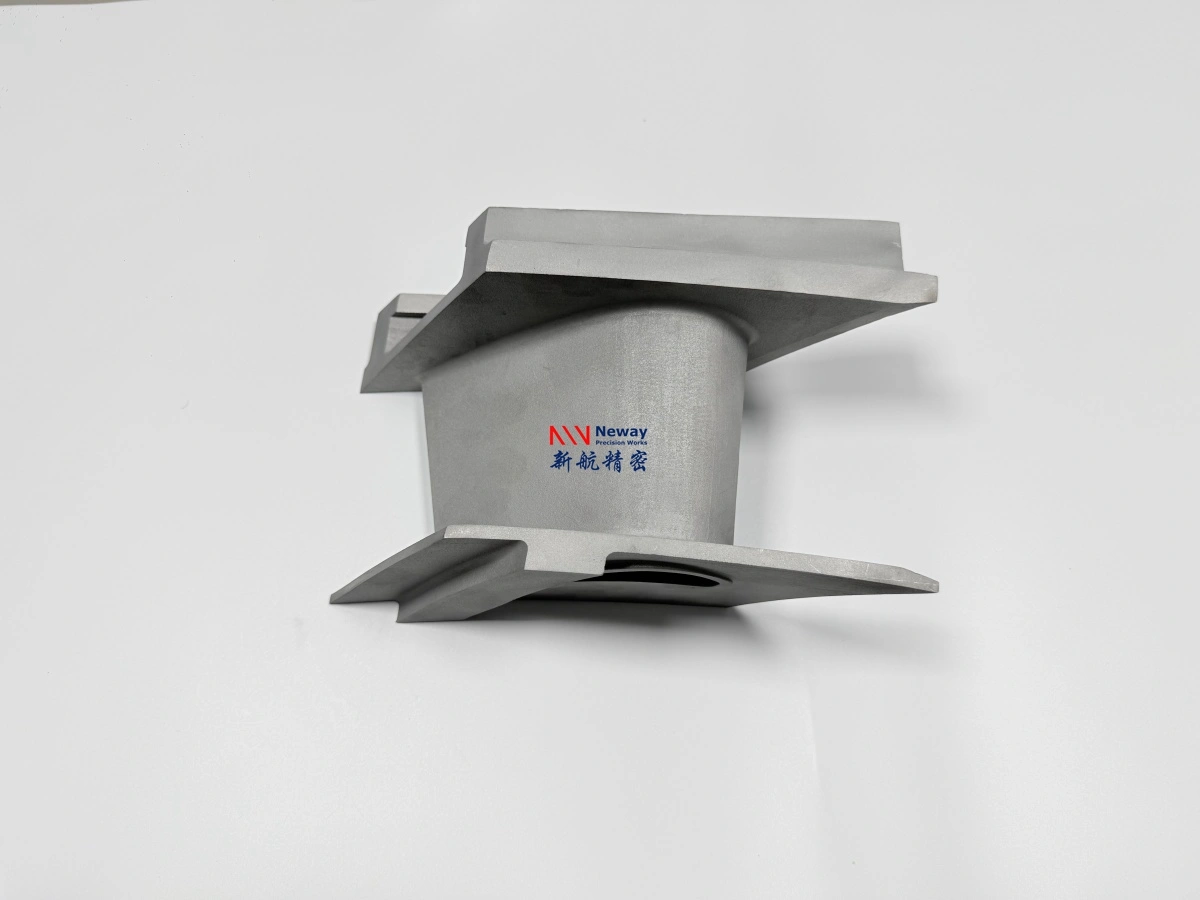

To receive an accurate Inconel 718 3D printing quote, customers should provide a 3D CAD file, 2D drawing, material requirement, quantity, tolerances, post-processing requirements, inspection requirements, use environment, and target lead time. Because Inconel 718, also known as GH4169, is often used for high-temperature, load-bearing, and corrosion-resistant components, the quotation should consider not only geometry but also temperature, load, fatigue, corrosion, and documentation requirements.
1. Direct Answer: What Should Be Included in the RFQ?
A complete Inconel 718 RFQ should include both geometry data and final-use requirements. The 3D file is used to evaluate printability, volume, support strategy, and build orientation, while the 2D drawing defines tolerances, threads, critical dimensions, machined surfaces, and inspection requirements.
RFQ Item | Why It Matters |
|---|---|
3D CAD file | Used for printability review, support planning, build orientation, and material volume calculation |
2D drawing | Defines tolerances, threads, datum references, critical dimensions, and surface requirements |
Material requirement | Confirms Inconel 718 / GH4169 or whether an equivalent high-temperature alloy is acceptable |
Quantity | Affects unit cost, build layout, setup cost, and production planning |
Operating conditions | Helps evaluate temperature, load, corrosion, fatigue, and service-life requirements |
Post-processing | Determines heat treatment, HIP, CNC machining, EDM, surface treatment, and inspection cost |
Lead time | Helps evaluate standard or urgent production scheduling |
2. File Requirements for Inconel 718 Printing
STEP or X_T files are preferred for engineering review because they preserve accurate solid model data. STL files can be used for initial printing evaluation, but they do not replace a 2D drawing when critical dimensions, tolerances, threads, or machined surfaces are required.
STEP or X_T files are preferred for manufacturability and quote review
STL or 3MF files can support basic printing and volume evaluation
The latest revision should be clearly identified
Assembly files should show part quantity and installation relationship
2D drawings are required when tolerances, threads, datums, or inspection requirements matter
Inconel 718 parts are commonly manufactured by powder bed fusion, so support accessibility, overhangs, wall thickness, build height, and internal channels should be reviewed before quotation.
3. Material Requirement and Equivalent Options
The RFQ should clearly state whether the required material is Inconel 718, GH4169, or whether an equivalent nickel-based high-temperature alloy is acceptable. Material requirements can affect powder availability, certification, heat treatment, inspection, cost, and lead time.
Specify whether Inconel 718 is mandatory
Confirm whether GH4169 or equivalent superalloy material is acceptable
State whether material certificate or chemical composition documentation is required
Identify whether the part is for prototype validation, functional testing, or final service use
4. Tolerance and Machining Requirements
For custom Inconel 718 parts, critical dimensions should be clearly marked on the 2D drawing. As-printed surfaces are suitable for complex near-net-shape geometry, but assembly faces, threaded holes, sealing surfaces, precision bores, datum faces, and close-tolerance areas usually require CNC machining.
Feature | Recommended RFQ Note |
|---|---|
Threaded holes | Define thread size, depth, tolerance, and whether inserts or special thread forms are required |
Assembly faces | Mark flatness, parallelism, perpendicularity, datum, and surface roughness requirements |
Sealing surfaces | Specify surface roughness, flatness, pressure requirement, and final finishing method |
Hole positions and bores | Define positional tolerance, diameter tolerance, roundness, and final machining requirement |
Machining allowance | Confirm which surfaces require added stock for CNC or EDM post-machining |
For narrow slots, fine features, or difficult-to-machine internal areas, EDM may also be considered during the manufacturing review.
5. Performance Requirements for High-Temperature Parts
Since Inconel 718 is often used for demanding superalloy components, performance requirements should be included whenever possible. These details help determine whether heat treatment, HIP, mechanical testing, or enhanced inspection is needed.
Operating temperature and thermal cycling conditions
Mechanical load, pressure, vibration, or fatigue exposure
Corrosion or oxidation environment
Expected service life or reliability requirement
Target strength, elongation, hardness, or creep-related requirement if specified
Safety factor, qualification plan, or certification requirement if applicable
6. Post-Processing and Inspection Requirements
Post-processing requirements strongly affect Inconel 718 printing cost and lead time. If the part is functional, load-bearing, or high-temperature critical, the RFQ should specify whether heat treatment, HIP, CNC machining, EDM, surface finishing, or inspection reports are required.
Heat treatment for stress relief and mechanical property development
HIP for fatigue-critical or high-reliability structural parts
CNC machining for precision holes, threads, datums, and sealing faces
EDM for difficult internal features, slots, or high-hardness post-machining requirements
Surface treatment for roughness, corrosion behavior, oxidation protection, or final appearance
CMM, 3D scanning, FAI, CT/X-ray, material certificate, heat treatment report, or mechanical testing report
7. Quantity and Lead Time
The required quantity and target lead time should be clearly stated. Single prototypes, small batches, and repeat production orders are quoted differently because setup cost, nesting efficiency, support removal, post-processing planning, and inspection scope can vary.
Quantity Type | Quotation Consideration |
|---|---|
Single prototype | Higher unit cost due to one-off setup, print preparation, and handling |
Small batch | May reduce unit cost by sharing build preparation and machine setup |
Annual demand | Helps evaluate repeat production pricing, process control, and long-term supply planning |
Urgent lead time | May require special production scheduling and should be confirmed early |
8. Summary
To request an Inconel 718 3D printing quote accurately, customers should provide the 3D CAD file, 2D drawing, material requirement, quantity, tolerances, machining surfaces, operating temperature, load condition, corrosion environment, post-processing needs, inspection scope, and target lead time. Complete RFQ information helps the supplier evaluate printability, cost, delivery, and whether Inconel 718 / GH4169 or another superalloy is the right choice.
If you need a custom GH4169 parts supplier, submit your 3D model, 2D drawing, quantity, operating conditions, tolerance requirements, post-processing needs, inspection requirements, and delivery target so the correct manufacturing route can be quoted accurately through 3D Printing Service.
