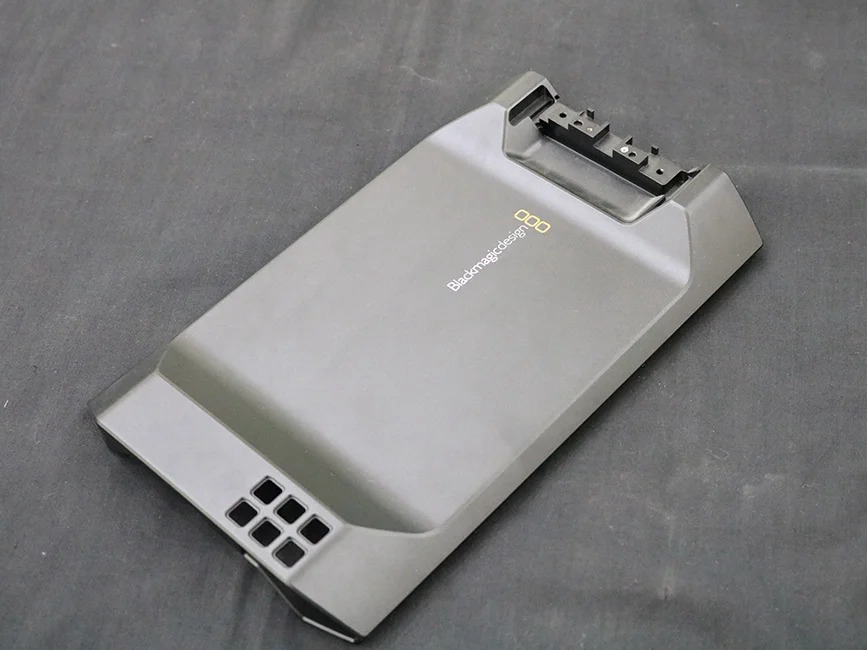

The Art and Science of Painting in Custom Parts Manufacturing

How Painting Works and Quality Assessment Criteria

The painting process for 3D printed parts involves applying a layer of paint or coating to the part's surface. This is typically done using various methods such as spray painting, powder coating, or dip coating. Each method offers distinct advantages, depending on the material, finish requirements, and application environment.

The quality of the painting process is assessed through several key criteria:

• Adhesion Strength: The paint must adhere well to the surface of the 3D printed part, which is typically tested using a crosshatch adhesion test or peel test.

• Surface Smoothness: Painted parts should have a smooth finish, which can be quantified through roughness measurements (Ra < 1 μm for high-quality finishes).

• Durability: The paint must withstand environmental factors like UV exposure, temperature fluctuations, and humidity. Paint durability is tested using accelerated weathering tests (e.g., ASTM D4587).

• Corrosion Resistance: Paint coatings on 3D printed parts, particularly in metal alloys, are tested for corrosion resistance using salt spray tests (ASTM B117) to simulate exposure to harsh environments.

Painting Process Flow and Key Parameter Control

The painting process involves several stages to ensure a high-quality finish and optimal protection for 3D printed parts:

1. Surface Preparation – Parts are cleaned to remove any oils, dust, or contaminants that might prevent the paint from adhering correctly. The surface is then treated (e.g., sandblasting) to improve adhesion.

2. Priming – A primer coat is often applied to enhance paint adhesion and create a uniform base for the topcoat. The primer material depends on the type of 3D printed part and the final finish required.

3. Topcoating – The final layer of paint is applied through spray painting, powder coating, or dip coating. Each method offers specific advantages regarding durability, texture, and appearance.

4. Curing or Drying – The paint is cured or dried to harden the coating and enhance its wear, heat, and moisture resistance. Curing times and temperatures depend on the type of paint used.

5. Quality Inspection – The painted part undergoes inspection for defects like uneven coverage, cracking, or peeling, and is tested for its performance under stress conditions.

Key parameters to control during painting include paint thickness (typically 20-100 microns), curing temperature (varies from 150°C to 200°C), and application method (spray, dip, or powder coating). Proper control of these parameters ensures uniform coverage, adhesion, and durability.

Applicable Materials and Scenarios

Painting is compatible with various materials used in 3D printing, including metals, plastics, and ceramics. Below is a table listing commonly painted materials for 3D printed parts and their primary applications, with hyperlinks to the specific materials:

Painting is essential in industries where 3D printed parts must perform under harsh conditions and look appealing. Typical applications include automotive parts exposed to environmental elements, aerospace components requiring UV protection, and consumer electronics housings that need aesthetic appeal.

Advantages and Limitations of Painting for 3D Printed Parts

Advantages Painting offers several key benefits for 3D printed parts:

• Enhanced Aesthetic Appeal: Various colors and finishes (matte, glossy, metallic) can improve the part’s visual appeal.

• Corrosion Resistance: Painting creates a protective layer that helps resist corrosion, especially in parts exposed to harsh environments, such as automotive and marine components.

• Improved Durability: Painted parts are more resistant to wear, scratches, and impacts, enhancing their longevity in high-stress applications.

• UV Protection: For parts used in outdoor or sun-exposed environments, painting provides UV protection to prevent material degradation.

Limitations. However, painting also has limitations:

• Surface Imperfections: The painting process can highlight imperfections in the surface of the 3D printed part, requiring careful surface preparation before painting.

• Thickness Limitations: Painted coatings are generally thinner than surface treatments like anodizing, which may limit their effectiveness in extreme wear environments.

• Environmental Impact: Some painting processes, especially solvent-based paints, can be environmentally damaging if improperly handled.

Painting vs. Other Surface Treatment Processes for 3D Printed Parts

Painting is often compared to surface treatment processes like anodizing, powder, and PVD coating. Below is a table comparing painting with these processes based on specific parameters:

Application Cases for Painted 3D Printed Parts

Painting is widely used in industries where custom 3D printed parts must perform under harsh environments and have a high-quality appearance. Some notable application cases include:

• Aerospace: Painted aircraft components show improved resistance to environmental factors, including a 40% increase in UV protection.

• Automotive: Automotive body parts painted for aesthetic appeal are up to 30% more resistant to environmental wear and tear.

• Consumer Electronics: Smartphone housings with painted finishes offer an additional 25% in scratch resistance and enhanced visual appeal.

• Marine: Marine components painted with high-performance coatings increase corrosion resistance by up to 50%, extending their service life in saltwater environments.

FAQs

1. What are the advantages of painting for 3D printed parts?

2. How does painting improve corrosion resistance for 3D printed parts?

3. What is the difference between painting and anodizing?

4. Can all types of 3D printed parts be painted?

5. How long does the painting process take, and what factors affect its duration?
